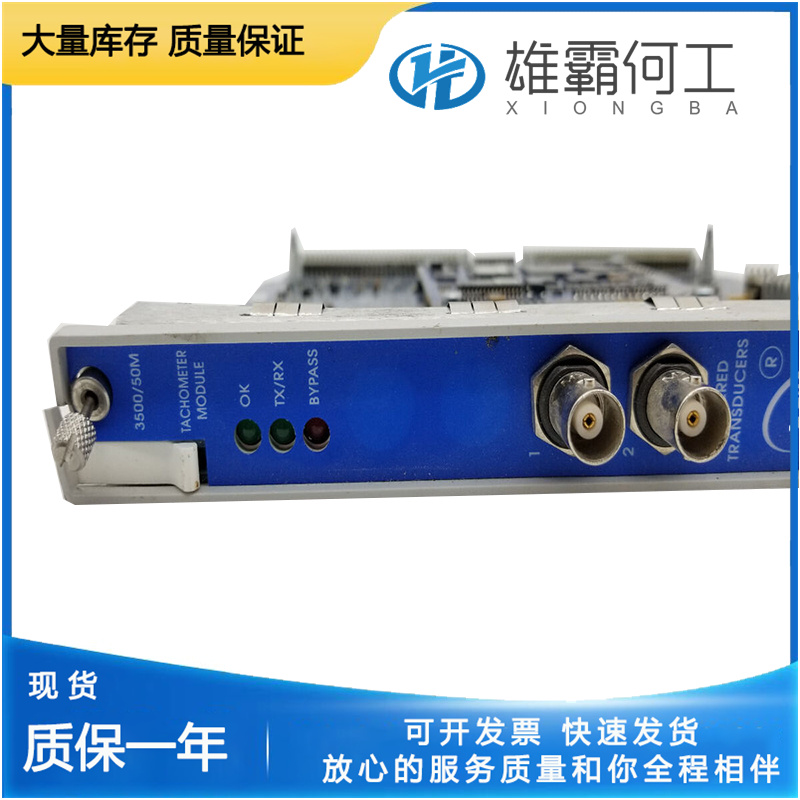

BENTLY 3500/50M  框架系统转速 模块

BENTLY 3500/50M前置器地震监测器：通过持续比较监测参数与配置报警来保护机械

驱动警报的设定点。

1.向双方传达基本机器信息

2.操作和维护人员。

3500/42M前置器地震监测器是一个四通道监测器，可接受来自接近传感器和地震传感器的输入。它调节信号以提供振动和位置测量，并将调节后的信号与用户可编程的警报进行比较.根据配置，每个通道通常会调节其输入信号，以生成各种称为静态值的参数。您可以为每个活动静态值配置警报设定点，并为任意两个活动静态值设置危险设定点。

BENTLY 3500/50M  框架系统转速 模块

BENTLY 3500/50M  框架系统转速 模块

使用机架配置软件为监测器测量的每个值设置警报级别，并为BENTLY 3500/50M测量到的任何两个值设置危险设定点。每个测量值的报警范围为满量程的0到100%。然而，当满标度范围超过传感器的范围时，传感器的范围将限制设定点。

该设备符合FCC规则第15部分。操作受

以下两个条件：

1.本设备不会造成有害干扰。

2.本设备必须接受接收到的任何干扰，包括可能导致

不希望的操作。

EMC欧洲共同体指令：EMC指令2014/30/EU

标准：EN 61000-6-2抗扰度

工业环境：EN 61000-6-4工业环境排放

BENTLY 3500/50M  框架系统转速 模块

BENTLY 3500/50M  框架系统转速 模块

     The BENTLY 3500/50M Proximitor Seismic Monitor: l Protects machinery by continuously comparing monitored parameters against configured alarm setpoints to drive alarms. l Communicates essential machine information to both operations and maintenance personnel. The BENTLY 3500/50M Proximitor Seismic Monitor is a four-channel monitor that accepts input from proximity and seismic transducers. It conditions the signal to provide vibration and position measurements and compares the conditioned signals with user-programmable alarms.The monitor channels are programmed in pairs and can perform up to two of the listed functions at a time. For example, Channels 1 and 2 can perform one function while channels 3 and 4 perform another or the same function.Each channel, depending on configuration, typically conditions its input signal to generate various parameters called static values. You can configure alert setpoints for each active static value and danger setpoints for any two of the active static values.Indicates when the 3500/42M Proximitor Seismic Monitor is operating properly.If a multi-event gear or speed wheel generates the speed input, the upper limitation of the resultant input signal is approximately 20 KHz.

BENTLY 3500/50M  框架系统转速 模块

Use Rack Configuration Software to set alert levels for each value measured by the monitor and danger setpoints for any two of the values measured by the monitor. Alarms are adjustable from 0 to 100% of full-scale for each measured value. However, when the full-scale range exceeds the range of the transducer, the range of the transducer will limit the setpoint.
